led fluorescence attachment for Optical microscope
Giá:

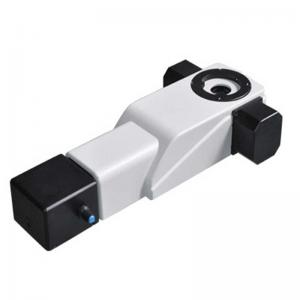

LED fluorescence Illumination MF-BG-LED
LED fluorescence illumination is designed as epi-fluorescence illumination for conventional infinity upright microscope upgrade to fluorescence functional. The illuminator MF-BG-LED gets blue and green two excitation groups in one unit, different filter groups can be selected by moving the slider to do fluorescence observation or switch to bright field observation. It is a excellent fluorescence attachment for microscope upgrading to LED epi-fluorescence microscope with a pretty high cost-effective
LED fluorescence Illumination MF-BG-LED.
Since LED epi-fluorescence microscope was pointed as the most suitable microscope for TB diagnostic by WHO, this fluorescence module is widely used in clinical especially for immunofluorescence and microbiology.
Benefits of MF-BG-LED LED fluorescence illumination
Click here to know more inforamtion of LED fluorescence illumination
Matched microscopes
Parameters :
With clients specific requirement, filters in Chroma, Semrock,Omega are optional
Application examples:
Microbiology (especially 2 colors Blue-Green excitations)
TB diagnostic ( (Immunofluorescence Assays, especially Royal Blue excitation)
LED fluorescence illumination is designed as epi-fluorescence illumination for conventional infinity upright microscope upgrade to fluorescence functional. The illuminator MF-BG-LED gets blue and green two excitation groups in one unit, different filter groups can be selected by moving the slider to do fluorescence observation or switch to bright field observation. It is a excellent fluorescence attachment for microscope upgrading to LED epi-fluorescence microscope with a pretty high cost-effective
LED fluorescence Illumination MF-BG-LED.
Since LED epi-fluorescence microscope was pointed as the most suitable microscope for TB diagnostic by WHO, this fluorescence module is widely used in clinical especially for immunofluorescence and microbiology.
Benefits of MF-BG-LED LED fluorescence illumination
- Two excitation color blue and green in one unit.
- Pull rod to transfer between bright field and fluorescence observation.
- For single and multiple fluorescence.
- Save time with no needs of preheating and cooling waiting.
- User-friendly compare to mercury lamp.
- Longer working life than mercury lamp
- Appropriate price with reliable quality.
Click here to know more inforamtion of LED fluorescence illumination
Matched microscopes
- Olympus CX22, CX31,CX41,BX43,etc
- Nikon E100, E200,etc
- Leica DM500, DM700
- Zeiss PrimoStar
- Motic
| Excitation LED lamp | Excitation filter wavelength | Suitable Fluorescein |
| UV | 330-380nm | DAPI / Hoechst 33342&33258 / AMCA/AMCA-X / Alexa 350 |
| Blue | 460-490nm | GFP / EGFP / FITC / Alexa 488 / Cy2@ / Fluo-4 / FluorX@ / Fluoro-Jade |
| Green | 510-550nm | PI / EB / EH |
| Royal Blue | 420-480nm | Special for TB Diagnostic |
Parameters :
| Data sheet of MF-BG-LED fluorescence illumination | ||||
| Excitation color | LED lighting central wavelength | Excitation filter | Dichroic mirror | Emission filter |
| Blue | 475nm | 460-490nm | >500nm | >510nm |
| Green | 530nm | 510-550nm | >570nm | >590nm |
With clients specific requirement, filters in Chroma, Semrock,Omega are optional
| Optional Excitation Group | ||||
| Excitation color | LED lighting central wavelength | Excitation filter | Dichroic mirror | Emission filter |
| Royal Blue | 450nm | 420-480nm | >500nm | >510nm |
Application examples:
Microbiology (especially 2 colors Blue-Green excitations)
TB diagnostic ( (Immunofluorescence Assays, especially Royal Blue excitation)
